Dolls House - Under Construction
I have been experimenting with insulating the readers from each other in such close proximity, and I've found that tin foil actually does a suprisingly good job! So I have worked out a model for the house using corrugated card and tin foil. The card lends itself very nicely to being adapted for housing the readers, here are some pics:

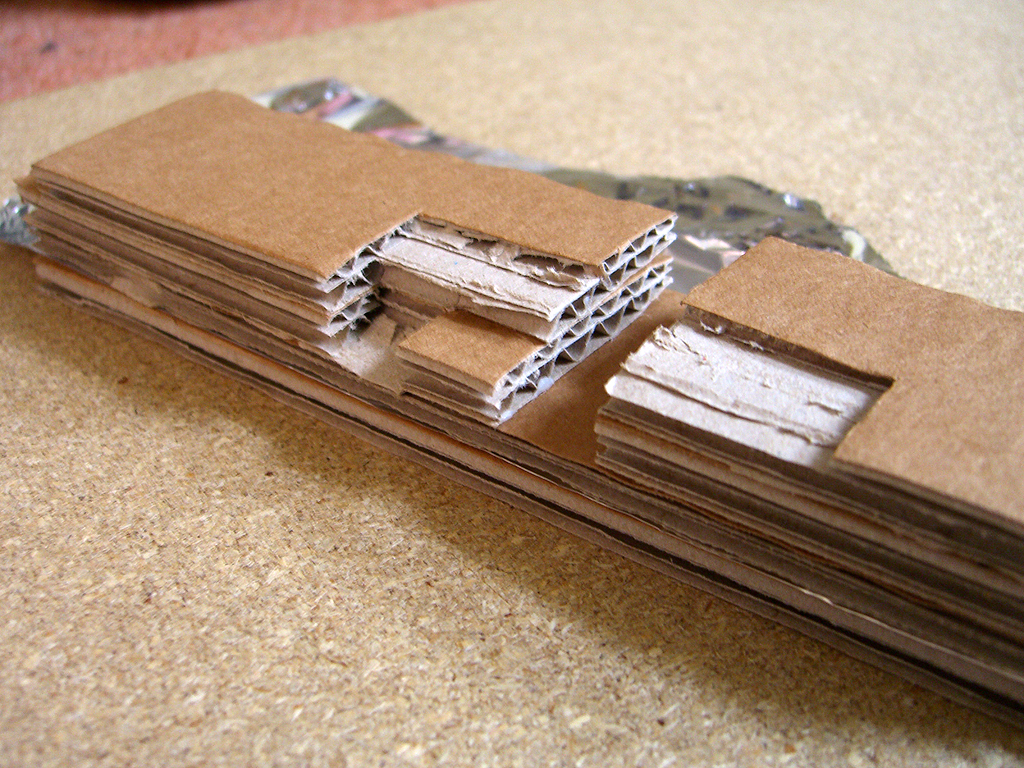

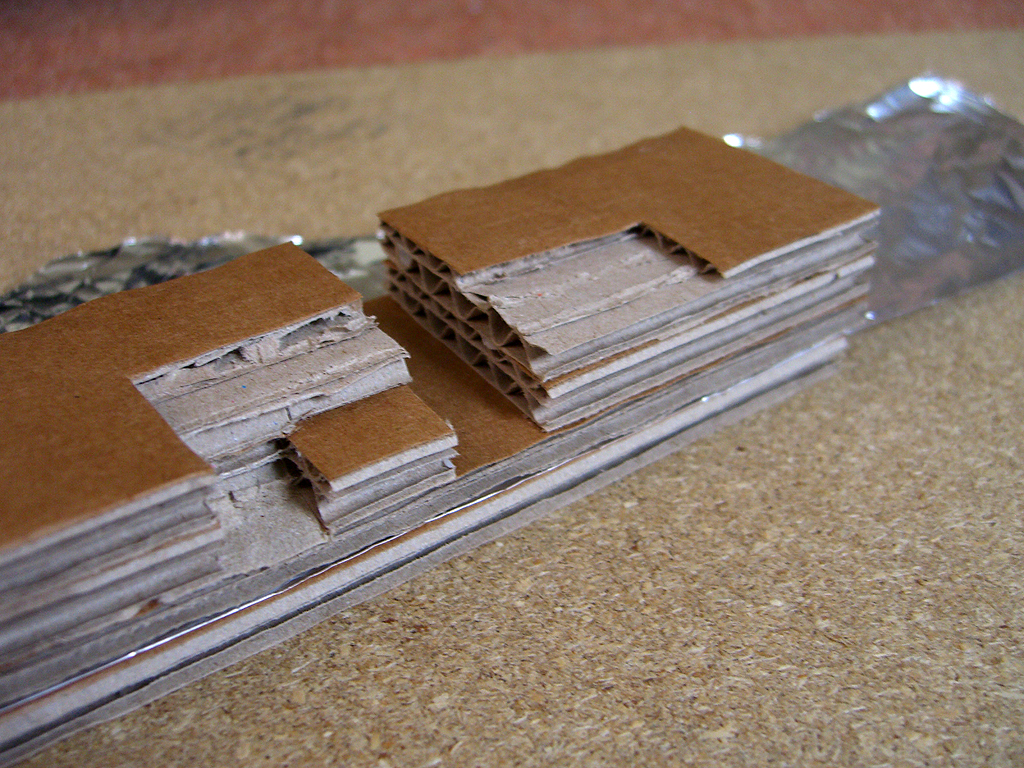

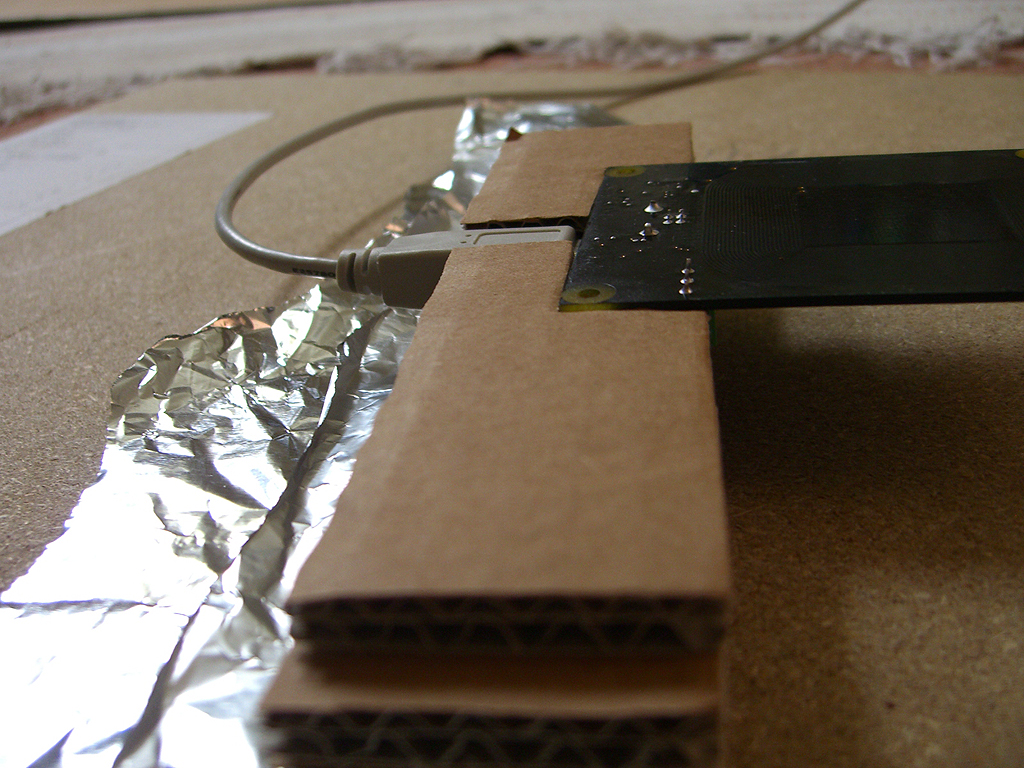

You can see the bottom two layers sandwich the foil, this is needed because the readers faulter if they actually touch the foil.

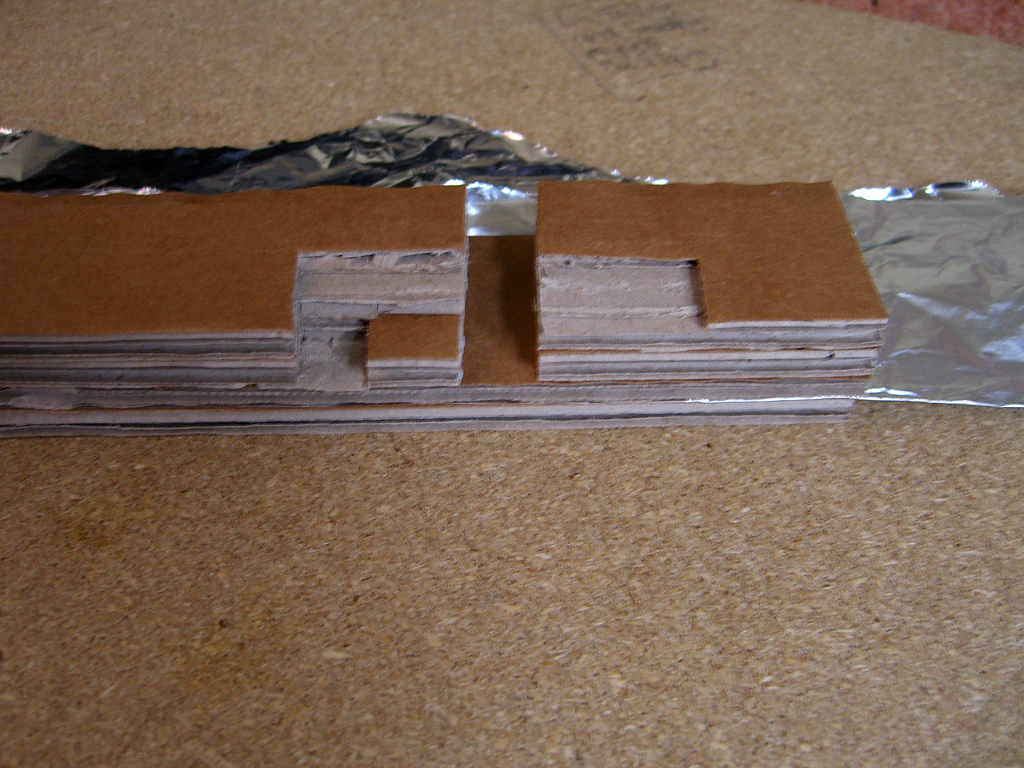

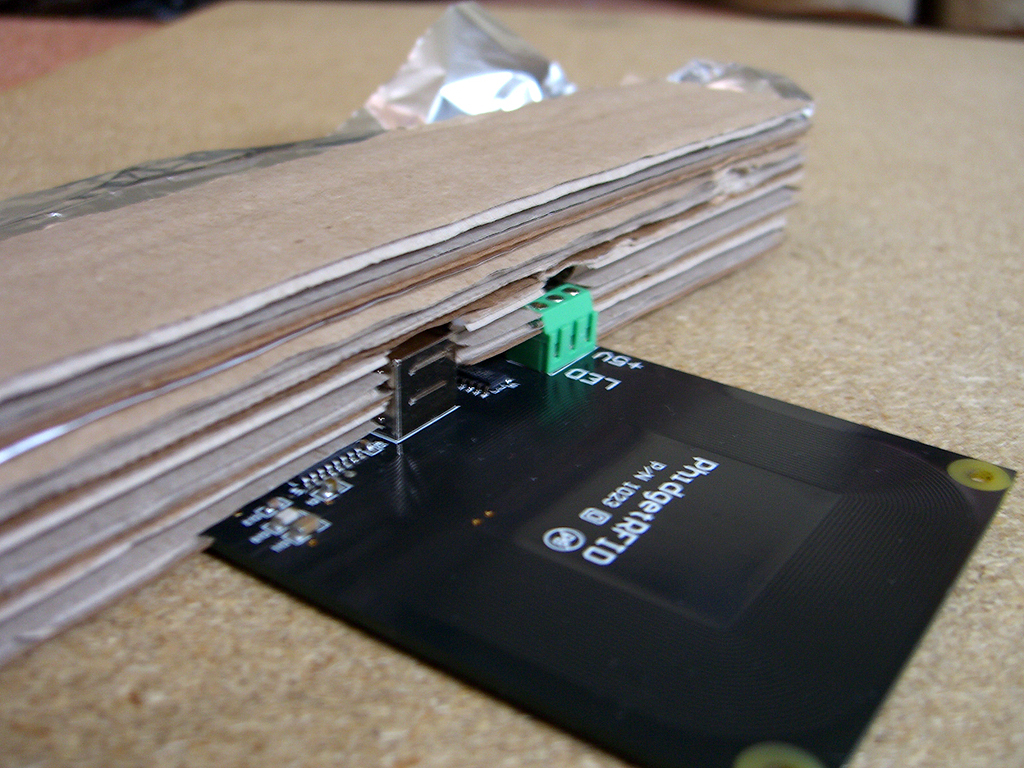

The slots house the usb plug and a selection of chips on the board:

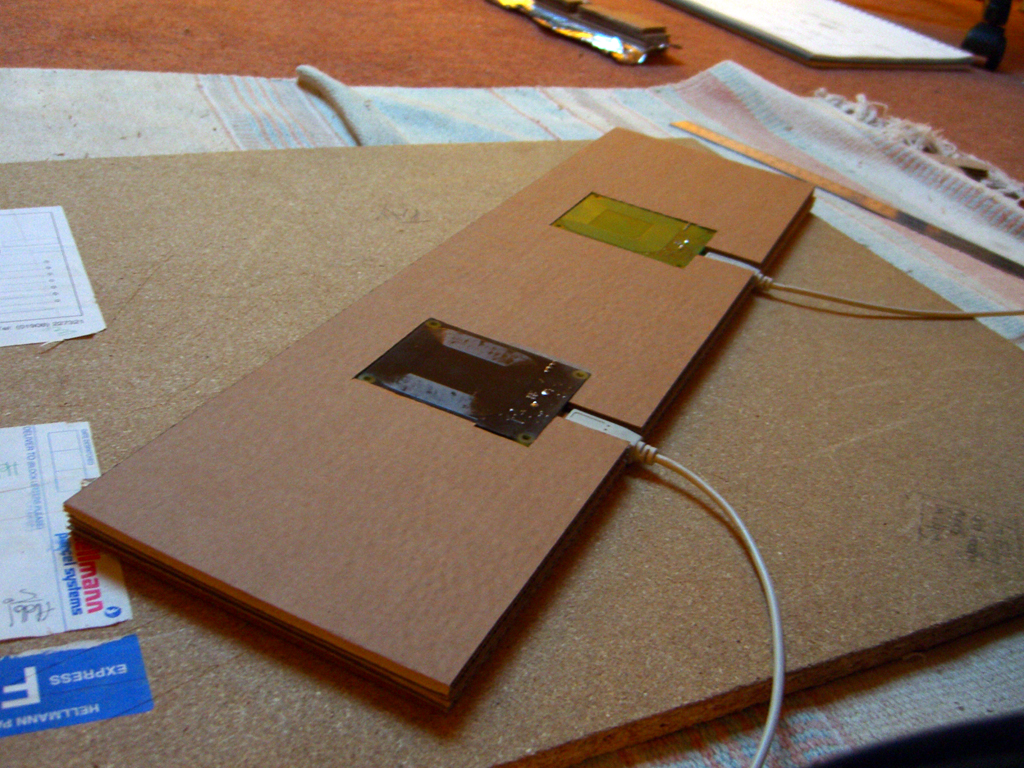

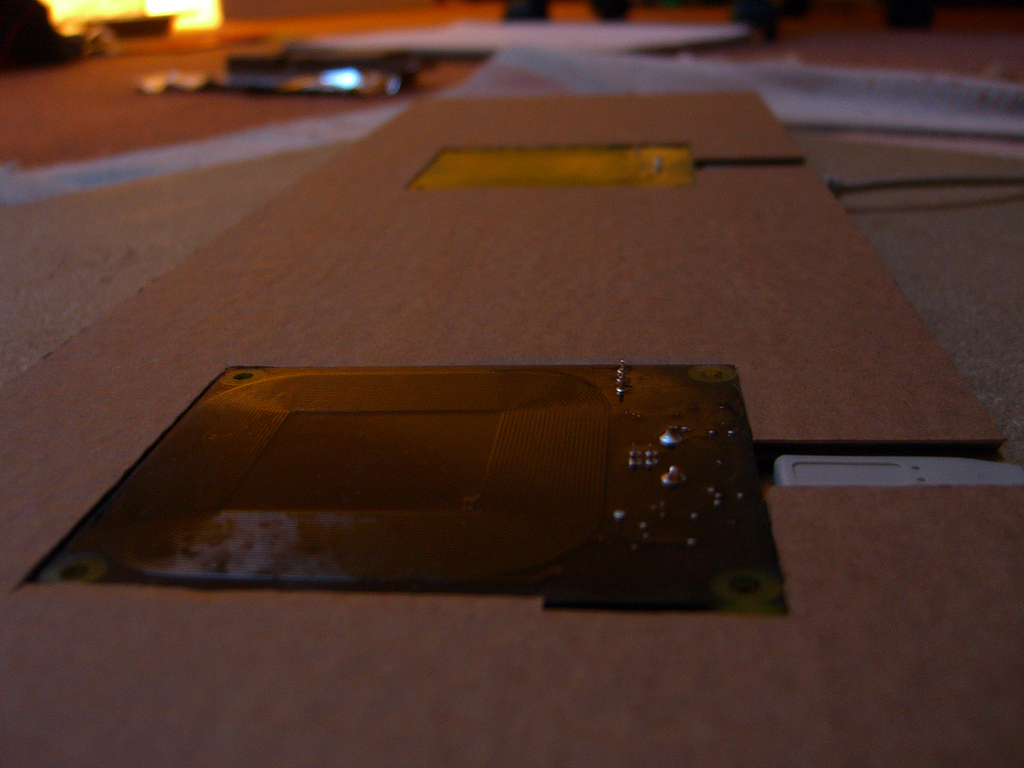

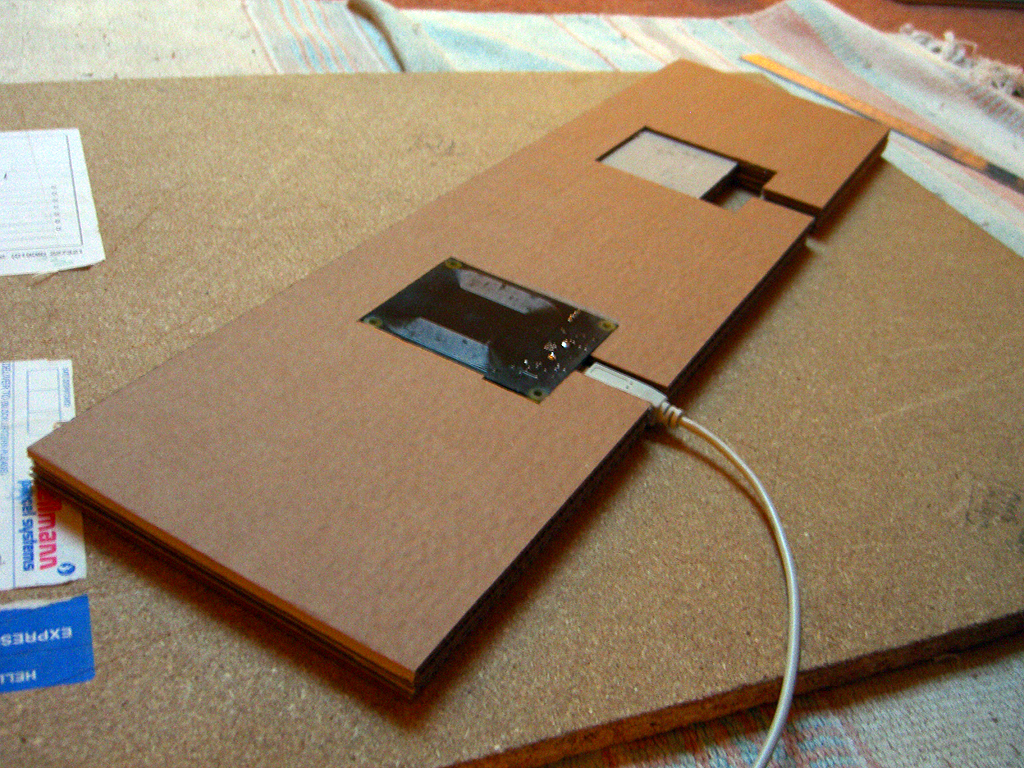

This way the reader board sits flush in the flooring allowing a paper layer to go down as "carpet":
And this next image shows the model from below, with the usb plug and the chips housed in the slots:
I'll post more as it comes together, right now...I've run out of card!
I have been experimenting with insulating the readers from each other in such close proximity, and I've found that tin foil actually does a suprisingly good job! So I have worked out a model for the house using corrugated card and tin foil. The card lends itself very nicely to being adapted for housing the readers, here are some pics:
You can see the bottom two layers sandwich the foil, this is needed because the readers faulter if they actually touch the foil.
The slots house the usb plug and a selection of chips on the board:
This way the reader board sits flush in the flooring allowing a paper layer to go down as "carpet":

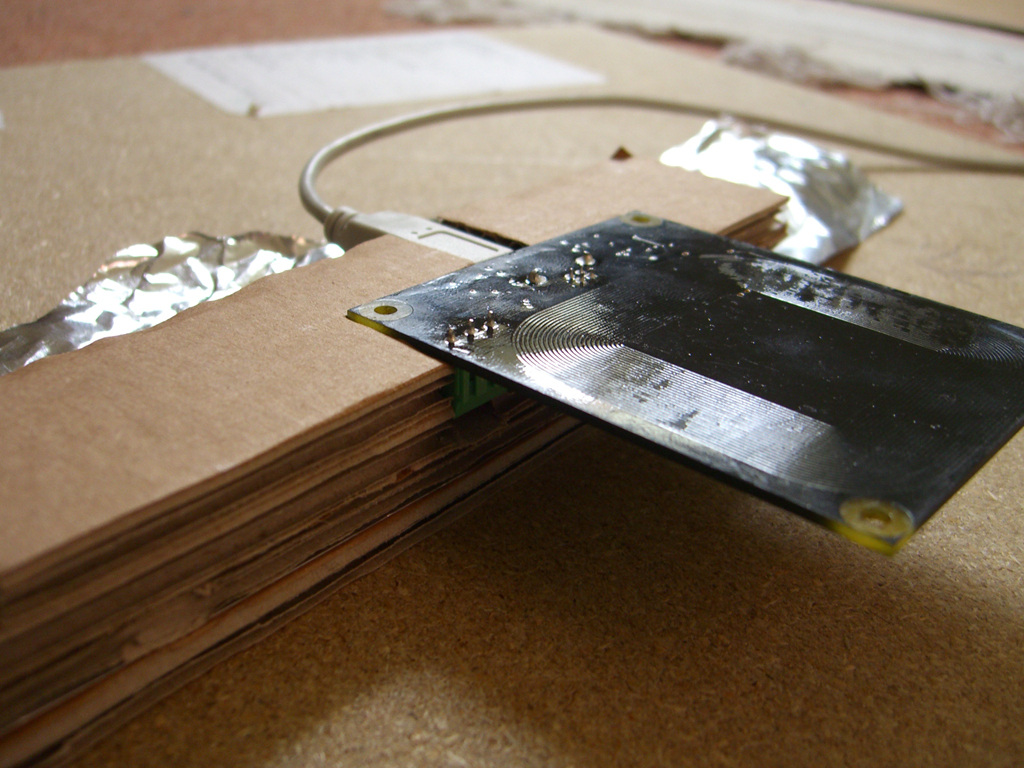

And this next image shows the model from below, with the usb plug and the chips housed in the slots:
***

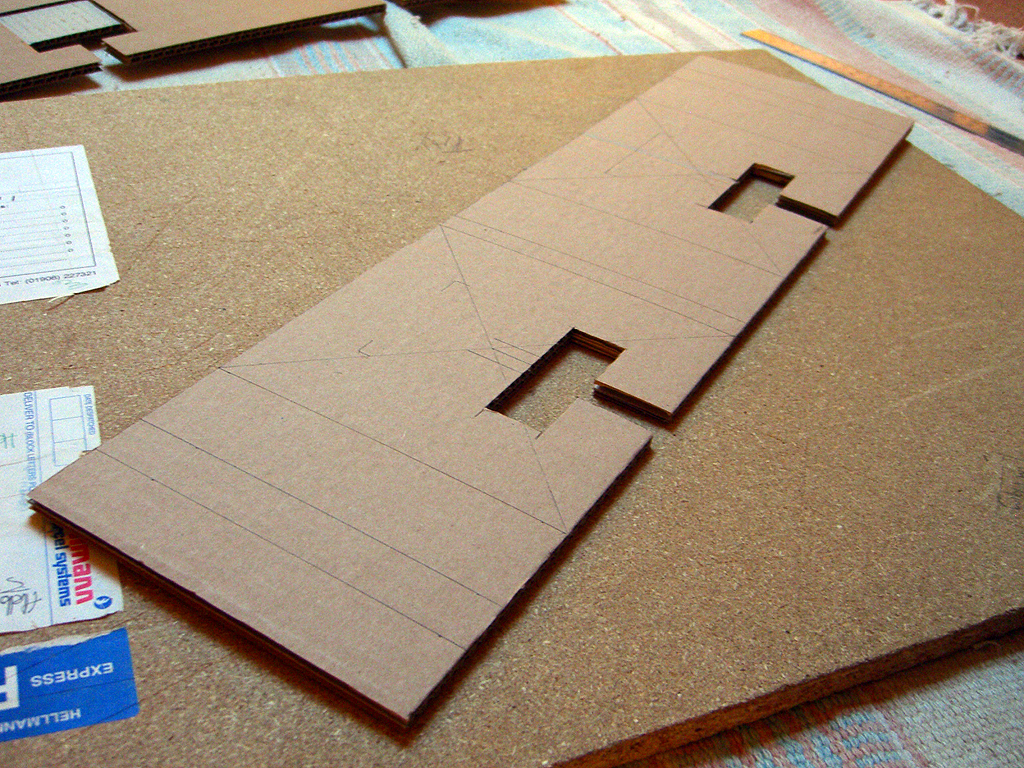

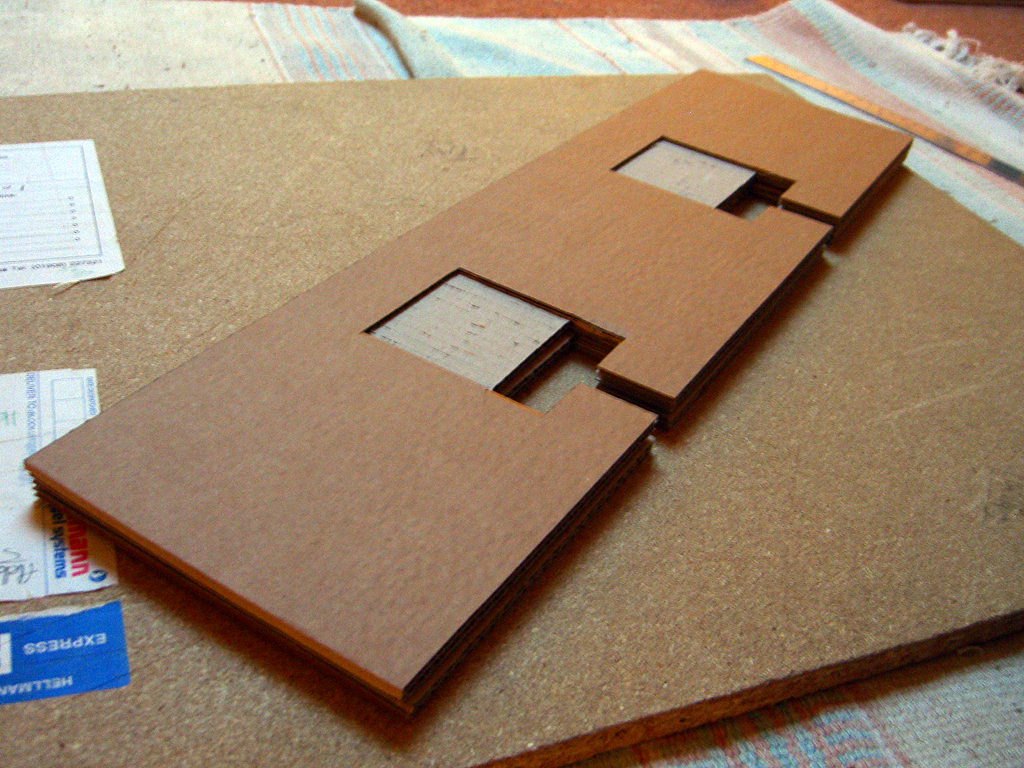

These next 5 images show the construction of the top 2 layers of the ground floor:I'll post more as it comes together, right now...I've run out of card!
